Description:
This item is ideal for long distance communications. It is simple, economical and practical.
|
All our items are new
|
|

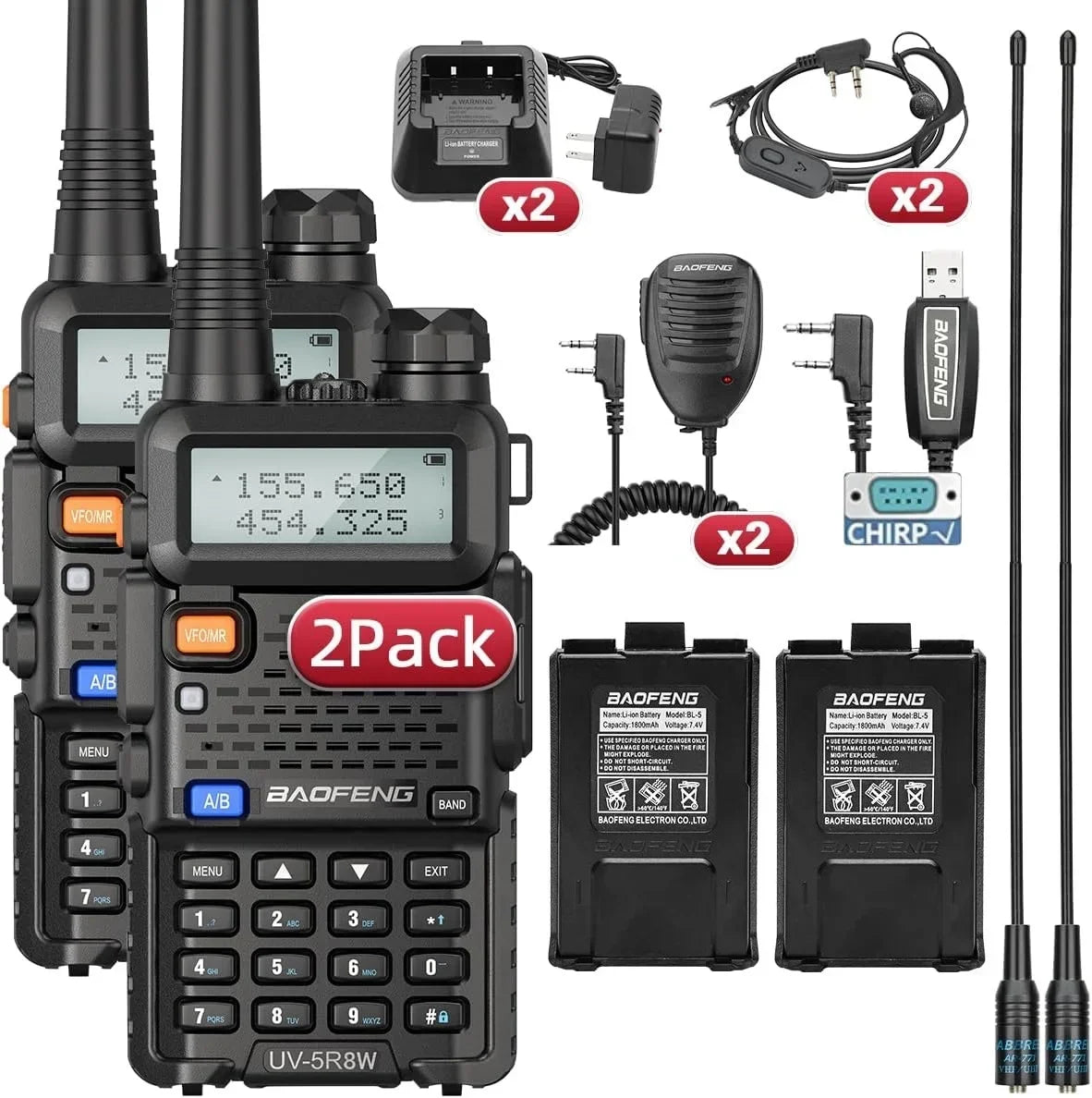

Model
|
Baofeng UV-5R 8W
|
|
Dual band / dual display / dual standby
|
Independent operation of A/B band (UV UU VV)
|
|
VFO and Memory Channel Scan
|
Emergency alarm
|
|
Time-out timer (TOT)
|
Selectable VOX levels from 0 to 9
|
|
PTT ID and ANI
|
FM radio and 25 station storage
|
|
Voice compression
|
50 CTCSS/104 DCS
|
|
Selectable high/low TX power
|
Busy Channel Lockout (BCLO)
|
|
DTMF function
|
OFF SET function
|
|
Nominal voltage
|
7.4 V DC ± 10%
|
|
Battery capacity
|
1800mAh
|
|
Operating temperature
|
-20°C~+50°C
|
|
Antenna impedance
|
50 OHM
|
|
Dimensions (L x W x H)
|
58x32x150mm (without antenna)
|
|
Frequency stability
|
±2.5 ppm
|
|
Carrier wave tolerance
|
5 ppm
|
|
Modulation
|
16kØF3E / 11kØF3E
|
|
Maximum frequency deviation
|
< 5 kHz (large)
< 2.5 kHz (narrow)
|
|
Modulation character
|
6 dB frequency patch per fold
|
|
CTCSS/DCS
|
0.5 ± 0.1 kHz (large)
0.3 ± 0.1 kHz (narrow)
|
|
Sensitivity
|
< 0.16 µV (12 dB SINAD)
|
|
Silent sensitivity
|
< 0.2 µV
|
Package Contents:
1/2 X Portable Radio
1/2 X Antenna
1/2 X Li-ion Battery Pack
1/2 X Li-ion Charger
1/2 X Belt Clip
1/2 X The slingshot
1 X User Manual
